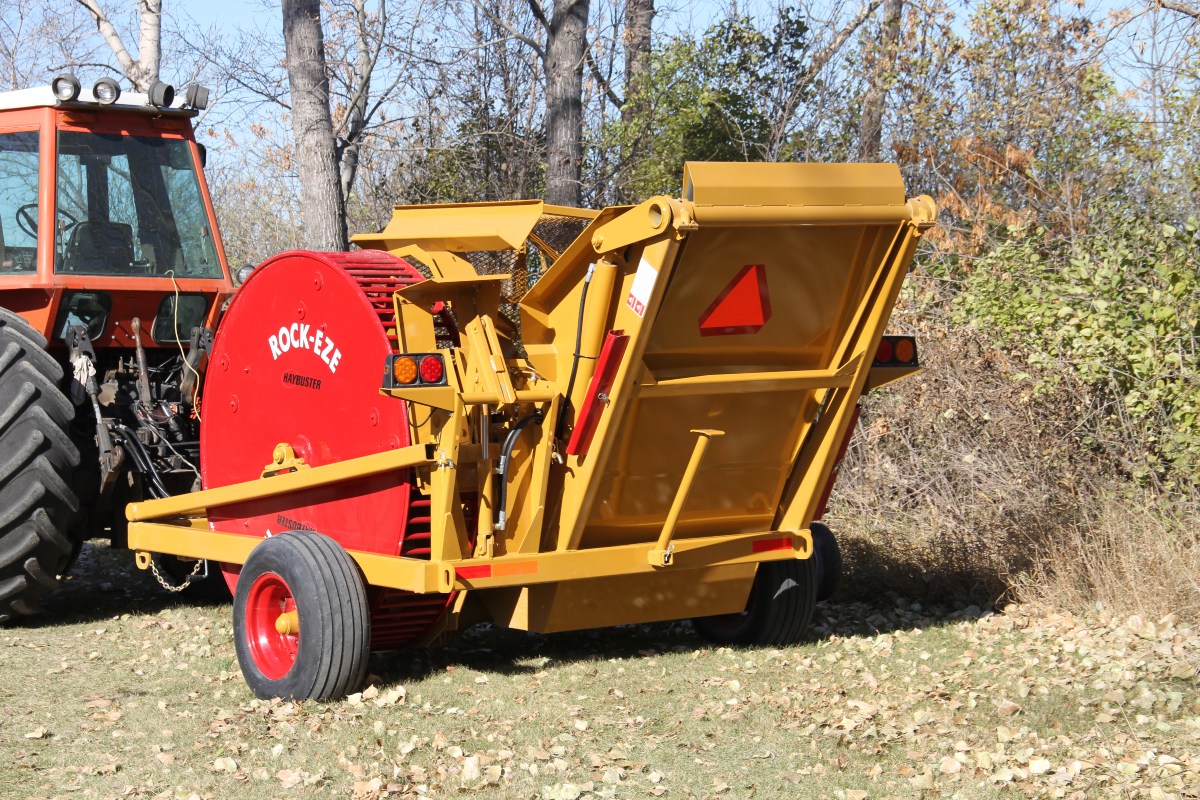

Get results with the 3106 Rock-EZE.
This rock picker has a reputation for picking up a high concentration of rocks from 2” to 15” size in one pass. Rock windrowing and picking are combined into an easy one-step operation. The heavy-duty construction makes the 3106 Rock-EZE a durable and high-quality machine, perfect for your needs.
Haybuster's 3106 Rock-EZE rock windrower picker features:
- Hardfaced rock windrower teeth
- Picks rocks from 2 in (5.08 cm) to 15 in (38.1 cm) in diameter and will clear a 10 ft (3.05 m) path
- The rockbox has a 1 cubic yd capacity with an 80 in dump height
Features

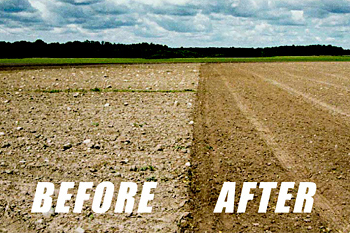

Clear Your Fields
Clears rocks sized from 2-15 inches (5.08-38.1 centimeters).

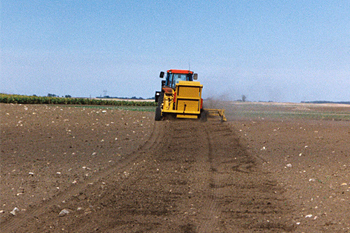

One-Step Rock Windrowing and Picking
Rock windrowing and picking are combined into an “easy” one-step operation, that clears a 10-foot (3.05 m) wide path with one pass.

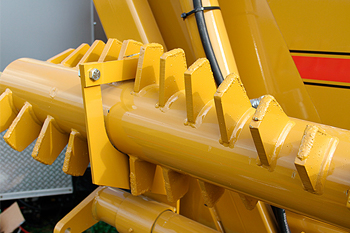

Hard-Faced Rock Windrower Teeth
The hard-faced rock windrower teeth comb through the top 1 inch of soil to dislodge the rocks. The windrower augers the rocks into the patented rock wheel.

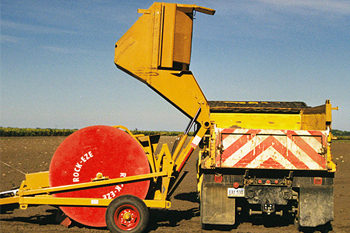

Rock Box
The 3106 has a rock box with a 1 cu. yd. (.765 cu. m) capacity. Additionally, the rock box can dump 1 cubic yard of rocks 80 inches high. The grate in the bottom of the rock box allows any soil that may have come in with the rocks to return to your field.
Rock Wheel and Rock Kicker
The ground driven rock wheel separates the excess dirt and stones smaller than 2 inches. The rock kicker assures that the rocks are distributed evenly within the rock box.

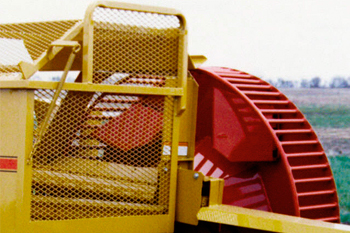

Spring Loaded Paddles
The rocks are carries up on spring loaded paddles and are dumped into the rock box.

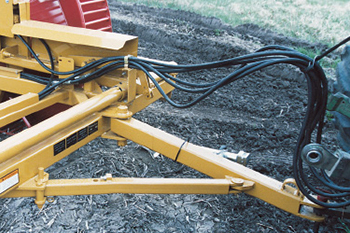

Field and Road Hitch
The field and road hitch converts the 3106 Rock-EZE from road to field and back to road with ease. The field and road hitch centers the 3106 behind the tractor for easier road transport.

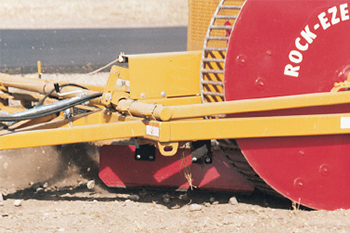

Drag Plate
The drag plate is used to prevent small rocks from being kicked into a previously picked area when rock picking on firm soil or in a pasture.
Find a Haybuster Dealer
Standard Features
- The Rock-EZE requires just 80 horsepower to operate.
- The windrower teeth comb through the top 1 inch of soil to dislodge the rocks. The windrower augers the rocks into the patented rock wheel.
- The ground driven rock wheel separates the excess dirt and stones smaller than 2 inches.
- The rocks are carried up on spring loaded paddles and are dumped into the rock box. The rock kicker assures that the rocks are distributed evenly within the rock box.
- The grate in the bottom of the rock box allows any soil that may have come in with rocks to return to your field.
- The rock box can dump 1 cubic yard of rocks 80 inches (203.20cm) high.
Optional Features
- The hopper dump hydraulic valve is available for tractors that have only 2 hydraulic remote valve outlets. Operation of the valve is activated by use of a pull rope.
Specifications
| WEIGHT | |
|---|---|
| Total | 4,600 lbs. (2,091 kg) |
| Hitch | 460 lbs. (209 kg) (IN FIELD MODE WITH WINDROWER AND ROCK WHEEL RAISED) |
| SHIPPING DIMENSIONS (WITH ROCK WINDROWER IN SHIPPING POSITION) | |
| Truck Freight Width | 7 ft. 10 in. (2.39 m) (with left-side tire, wheel, hub & spindle removed) |
| Tow Width | 9 ft. (2.74 m) |
| Length | 15 ft. 5 in. (4.70 m) |
| Height | 7 ft. 7 in. (2.31 m) |
| TRANSPORT & FIELD DIMENSIONS | |
| Width | 13 ft. (3.96 m) |
| Length | 15 ft. 5 in. (4.70 m) |
| Height | 7 ft. 7 in. (2.31 m) |
| Dump height | 7 ft. (2.13 m) |
| Ceiling Height Required to Dump | 14 ft. 4 in. (4.37 m) |
| CHASSIS FEATURES | |
| Towing Arrangement | Clevis type hitch |
| Hitch Type | Two position, swing into transport or into field positions |
| Tires | (2) - 11L x 16 |
| Wheels | (2) 11 in. ( 27.94 cm) |
| Drive | Hydraulic via #60 Chain and Drop Case |
| Lift | 2 in. x 8 in. (5.08 cm x 20.32 cm) Double Acting Hydraulic Cylinder shared with Rock Wheel Lift |
| ROCK WHEEL | |
| Outside Diameter | 6 ft. (1.83 m) |
| Width | 14-3/4 in. (37.47 cm) |
| Bar Spacing | 1-7/8 in. (4.76 cm) |
| Number of Rock Paddles | 5 |
| Paddle Type | Spring Cushioned |
| Drive | Ground driven |
| Lift | 2 in. x 8 in. (5.08 cm x 20.32 cm) Double Acting Hydraulic Cylinder shared with Windrower Lift |
| ROCK BOX | |
| Dimensions | 44 in. x 60 in. (111.76 x 152.40 cm) |
| Capacity | 1 cu. yd. (0.76 m³) |
| Bottom Grate | 1/2 in. (12.7 mm) Thick with 15 - 1-1/2 in. x 10 in. (3.81cm x 25.4 cm) Slots |
| Dump Height | 84 in. or 7 ft. (2.13 m) |
| Lift | 2 - 3 in. x 24 in. (7.62 cm x 61 cm) Double Acting Hydraulic Cylinders |
| ROCK KICKER | |
| 3 double acting valves with quick coupler outlets | |
| Tractor weight | Must be of equal or greater weight than that of a fully loaded 3106 ROCK-EZE |
