The 980 is part of our CMF series of vertical mixers that cut materials like hay, straw and corn stocks.
They also mix materials like distillers, silage, corn and more.
The CMF-980 has a 980-cu. ft. mixing capacity with the standard extensions.

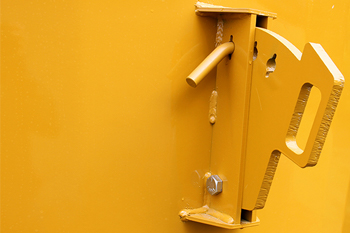

Adjustable Vertical Knives
Adjustable vertical knives for more aggressive cutting.

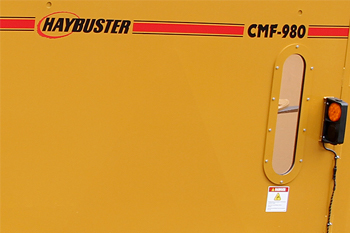

The CMP-980 has observation windows on the right and left sides of the machine. Standard safety equipment on each machine includes road lights and SMV decals.

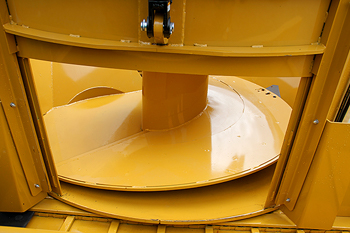

Large 24 Inch by 24 Inch Unloading Door
Large 24 inch by 24 inch unloading door for fast even unloading and cleaning.

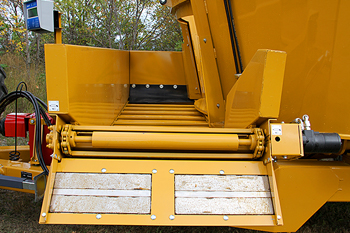

Versatile 36” Wide Cross and Unloading Conveyor
The CMF-980 equipped with a 36-inch-wide hydraulic chain/slat unloading conveyor featuring:
- cross conveyor only with right- or left-hand drives
- cross conveyor with spouts or endgates. Magnets are available for the spouts.
- cross conveyor with 3 ft. hydraulic conveyor extension. Available in right hand, left hand, or both right- and left-hand unload. The dual discharge unit can only unload from one side at one time. Spouts and optional magnets are also available.
- 26-5/8 in. to 55 in. discharge height.

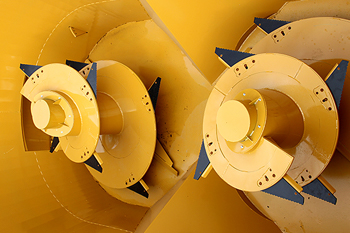

88” Heavy-Duty Twin Augers with 9 Knives Per Auger
Heavy-duty 88-inch twin screw augers, with 14-5/16” self-sharpening serrated knives, driven by 2 HD USA gearboxes that are covered by a two-year warranty.

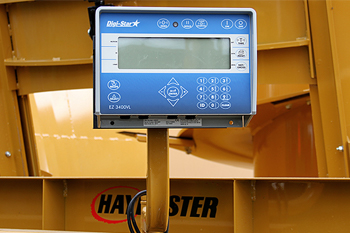

Digi-Star 4pt Scale with Choice of Optional Digi-Star Monitors
All Digi-Star monitors and scale heads are available with the CMF-980. The Digi-Star system is powered by a standard onboard 12-volt battery. Digi-Star feeding programs are also available.

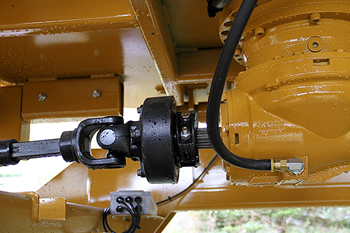

Free Motion Clutches on Driveline
Free motion clutches on driveline protect the heavy duty gearboxes. Gearboxes come with a two-year warranty. The optional two-speed gearbox is used for loaded startups and heavy rations.

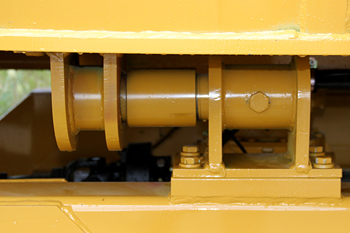

4-point scale for accurate weighing, with reduced scale bounce during loading and feeding.

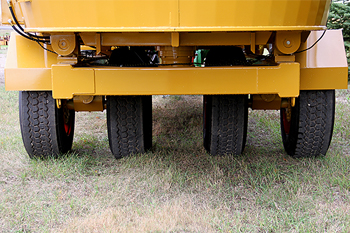

Oscillating Heavy-Duty Axles
Oscillating heavy-duty axles with 4) 385/65 R 22.5 20 ply tires provide even weight distribution on uneven and frozen ground.

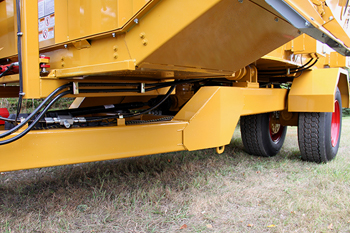

Heavy Duty Frame
- The CMF-980 is built with a heavy-duty 6” x 10” x 3/8” steel tube frame for strength and longevity.
- Onboard 12 Volt Battery
- The Digi-Star system is powered by a standard onboard 12 volt battery.

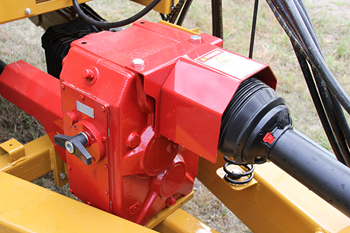

CV PTO or Optional 2-Speed Gear Box
- The CMF-980 comes equipped with either a heavy-duty 1-3/4” constant velocity (1,000 RPM) PTO or an optional 2-speed gearbox. The two speed gearbox is used for loaded startups and heavy rotations.
- 24” Steel Wall Liner
- 24” (60.9 cm) replaceable steel wall liner on the inside lower portion of the sidewalls.

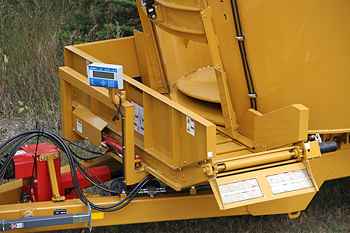

Optional Dogleg Conveyor Available.
Find a Haybuster Dealer

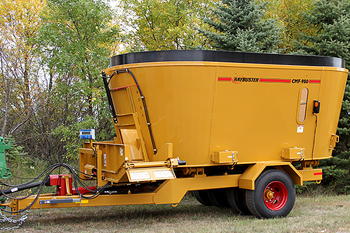

MIXING CAPACITY: The CMF-980 has a 980 cu. ft. mixing capacity with a tare weight of 30,900 lbs
UNLOADING DOOR: Large 24” x 42” unloading door for fast, even unloading and clean-out.
AUGERS: Heavy-duty 88” screw augers with self-sharpening serrated knives, driven by 2 HD USA gearboxes.
OSCILLATING AXLES: Oscillating Heavy Duty Axles with 4) 385/65 R 22 20- ply rated tires provide even weight distribution on uneven or frozen ground.
HEAVY-DUTY FRAME: The CMF-980 is built with a heavy-duty 6” x 10” x 3/8” steel tube frame for strength and durability
CV PTO WITH 2-SPEED GEAR BOX: The CMF-980 comes equipped with a heavy-duty 1 ¾” constant velocity 1000 rpm PTO with a 2-speed gearbox. The 2-speed gearbox is needed for loaded startups and heavy rations.
Cross Conveyor only with right- or left-hand drives.
Cross Conveyor with spouts or endgates. Magnets are available for the spouts.
Cross Conveyor with hydraulic conveyor extension. Available in right-hand, left-hand, or both right- and left-hand unload. The dual discharge unit can only unload from one side at a time. Spouts and optional magnets are also available.
Dogleg style conveyor also available
Magnets on discharge spouts
Magnets on the spouts remove ferrous metal, such as bale wire, from feed, providing the highest quality feed available.
Rear discharge door
The optional rear discharge door provides an additional means of discharging feed.
2-Speed Gear Box
The 2-speed gear box is used for heavy starts after transporting heavy rations to protect the tractor PTO and mixers drive train.
Choose from any Digi-Star scale indicator Also available are optional Digi-Star Feed Management Programs
|Total||19,100 lbs (8,663.61 kg)|
|Tongue Weight||2,480 lbs (1,124.91 kg)|

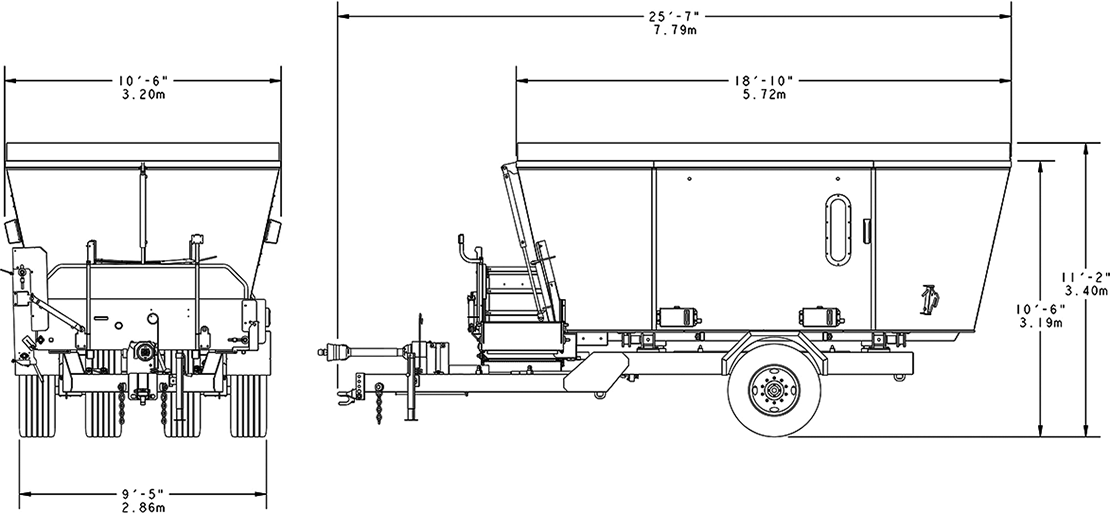

|Width||10' 6" (3.2 m)|
|Length||25' 7" (7.8 m)|
|Height||11' 2" (3.4 m)|
|Width||Between 10'-6" and 12'-4" Depending on Conveyor|
|Loading Height||11' 2" (3.4 m)|
|Towing Arrangement||V-Block or Clevis type hitch|
|Jack Capacity||7,000 lbs. (3,175.1 kg)|
|Jack Travel||10 in. (25.4 cm)|
|Tires||(4) 385/65 R 22.5 20-ply|
|Bearing Type||Tapered Roller|
|Extensions||12" rubber (standard)|
|Mixing Capacity W/ 12" Extension||980 cu. ft. (27.75 cu. m)|
|Gross Weight Capacity||50,000 lbs. (22,679 .62 kg)|
|Tare Weight - TMR||30,900 lbs (14,016 kg)|
|Diameter||88 in. (223.52 cm)|
|Flighting Thickness||5/8 in. (1.59 cm)|
|Number / Thickness Knives||14-5/16" (0.794 cm) thick
|DRIVELINE AND GEAR BOXES|
|Drive Line||44E Series Drivelines With Two-Speed Gearbox (Standard Equipment)|
|Clutch||Free Motion Automatic Clutches (2)|
|Gearboxes||(2) HD Gear Boxes With 2-Year Warranty|
|Type||36 in. (91.44 cm) Chain Without Hydraulic Orbital Motors|
|Discharge Height||26 5/8 in. (67.63 cm) to 55 in. (139.7 cm)|
|Discharge Options||left, right, both, rear commodity door|
|Door Opening||24 in. (60.96 cm) x 42 in. (106.68 cm)|
|Floor Thickness||3/4 in. (1.91 cm)|
|Side Wall Thickness||1/4 in. (0.635 cm) with 24" (60.96 cm) 12 Gauge Replaceable Steel Wall Liner|
|Scale||Digi-Star 4-Point Scale With Optional Digi-Star Scale Monitor|
|REQUIREMENT FOR OPERATION|
|PTO Horsepower Required||150 HP minimum recomended|
|PTO Type||1,000 rpm, 1 3/4" Dia with 20 Spline or
1,000 rpm, 1 3/8" Dia with 21 Spline
|SMV Sign and Road Lights||Standard Equipment|
|Electrical||12 VDC (battery included)|
